The Junction Box of the ANTARES experiment

DESIGN

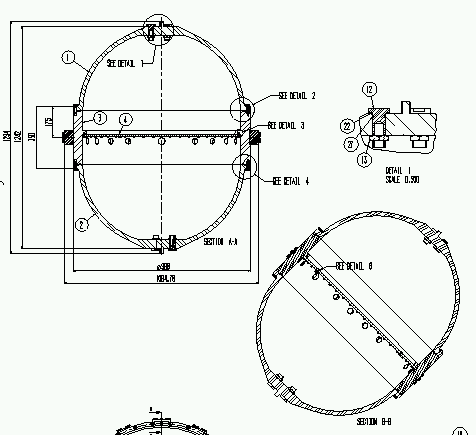

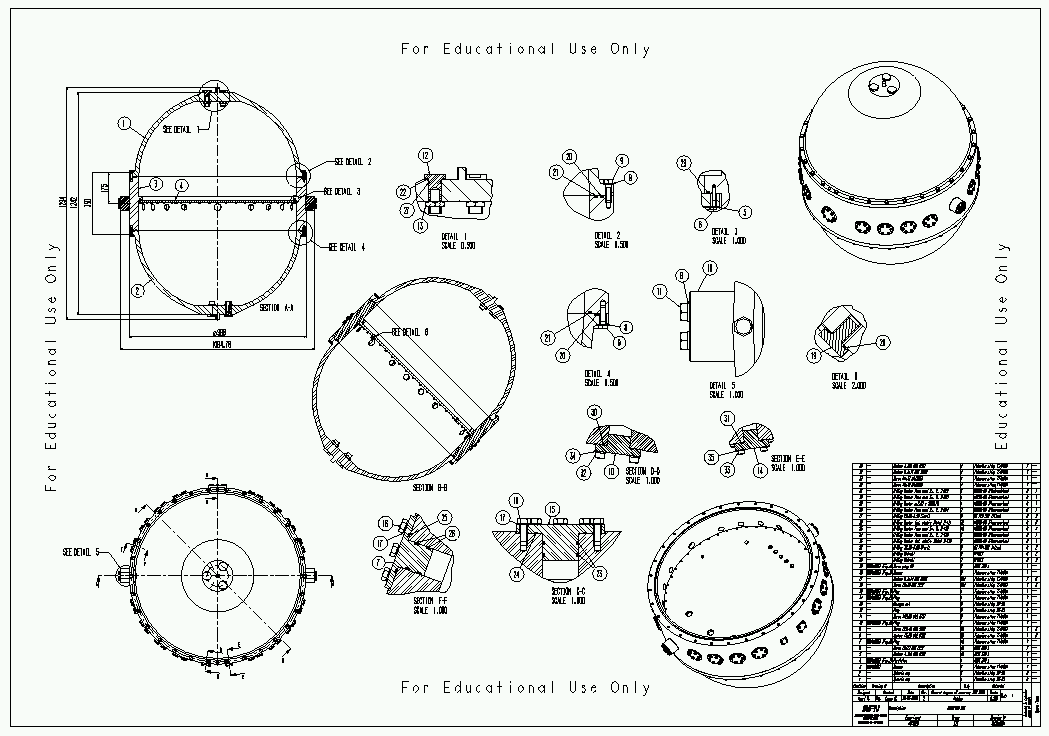

The Junction Box drawing. Click on the picture to see complete picture, or click here to download PostScript file for the full version (2.3 Mb)

TESTS

         * electrolitic currents
The   JB  is  made  by  two  slightly  different  Titanium alloys: BT-23 for the hemispheres and Ti 6 Al 4 grade 5 for the spacer.  Possible galvanic currents between   the two   alloys  can be   created   in the   sea environment: this test
describes the result obtained in the lab.

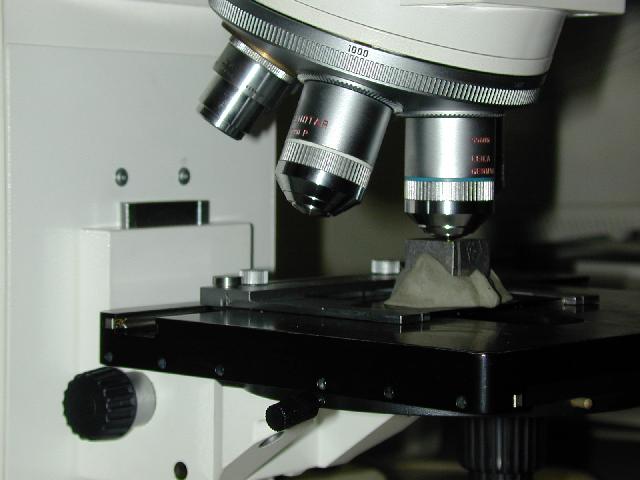

          * corrosion
A small sample of Titanium grade 5 was merged in sea water for a period of two months: this test compare the material before and after immersion

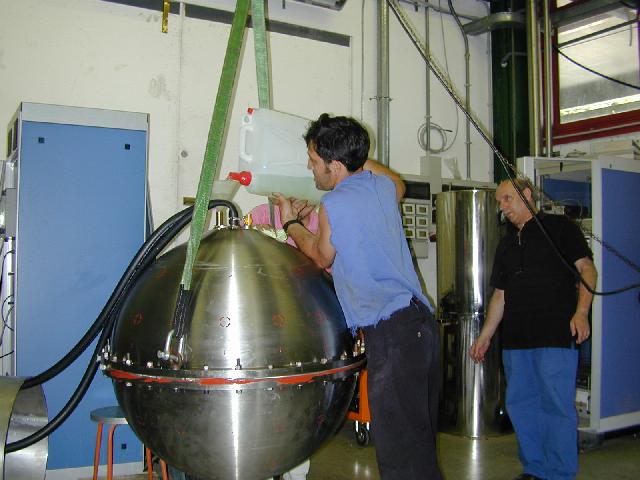

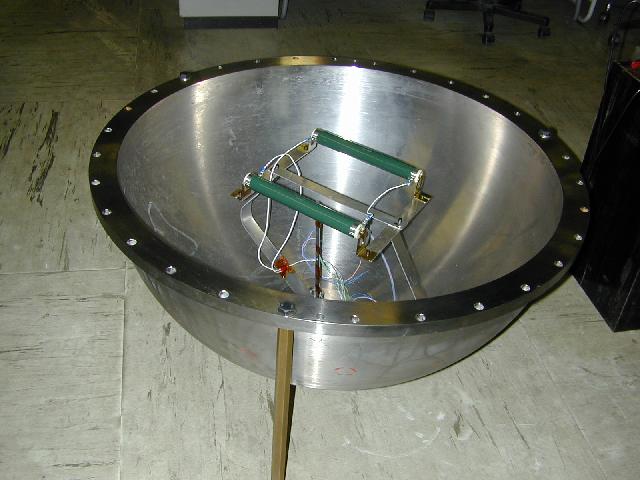

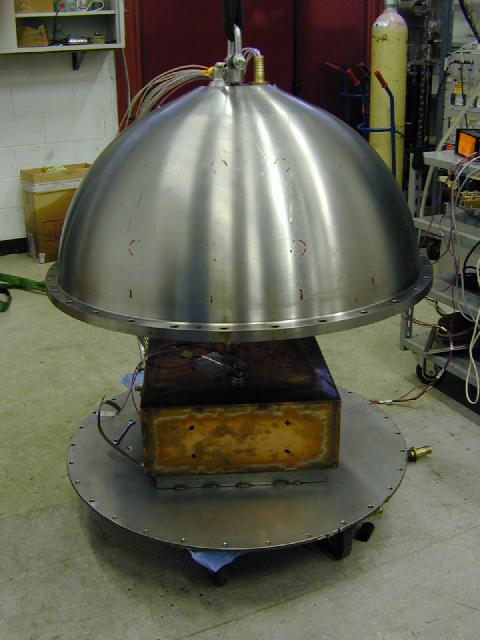

           *heat dissipation

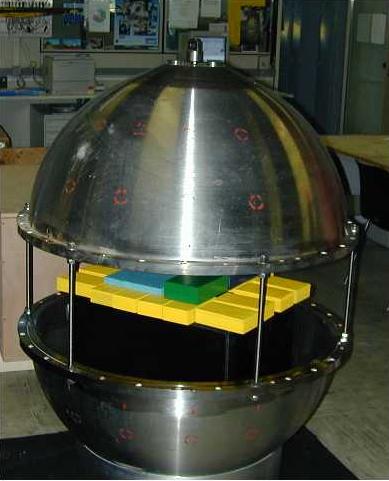

The JB   houses  the main  26 KVoltAmpere transformer and some active components which produce ~ 1 KWatt of power.  The test performed in our laboratory measures the temperature inside the JB in different conditions and determines the configuration where the heat dissipation is optimised.
   - abstract
   - introduction
   - the experimental apparatus and the measurements
   - the simulations

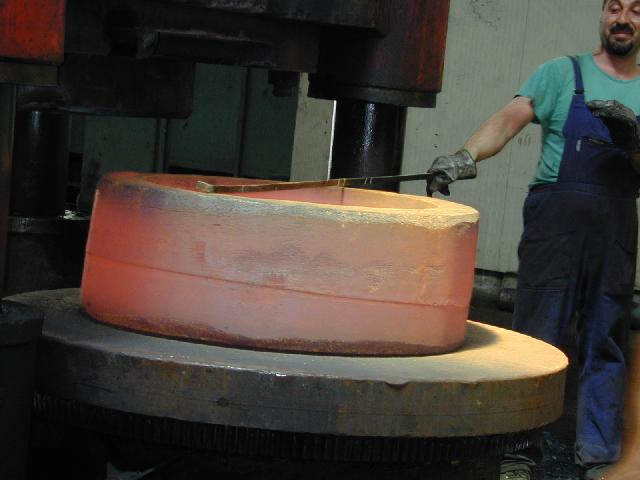

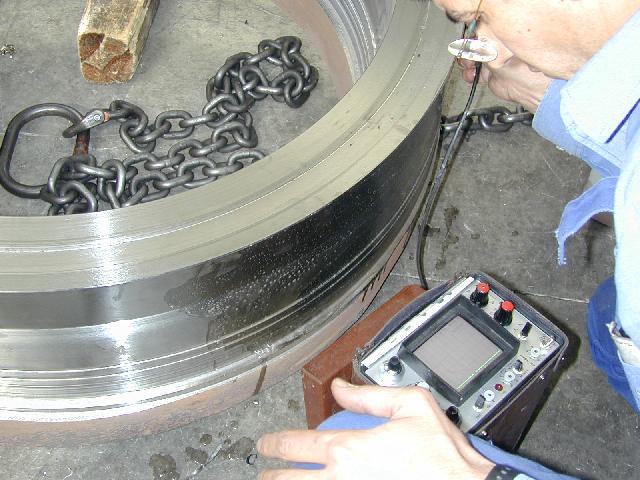

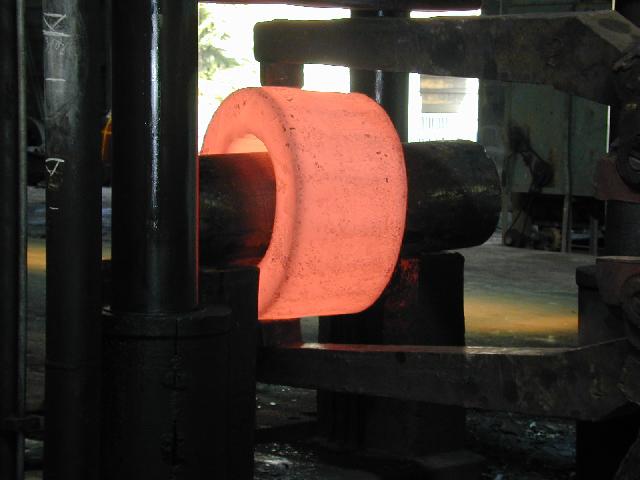

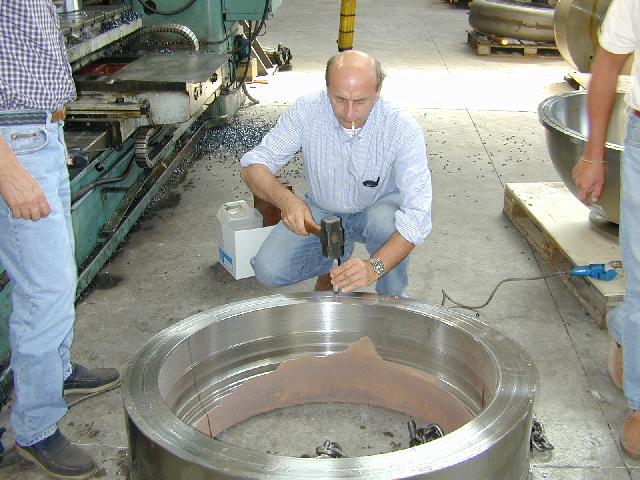

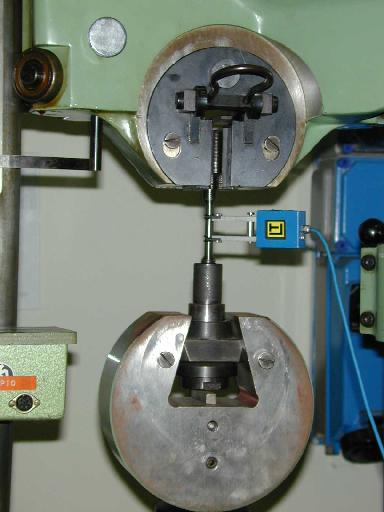

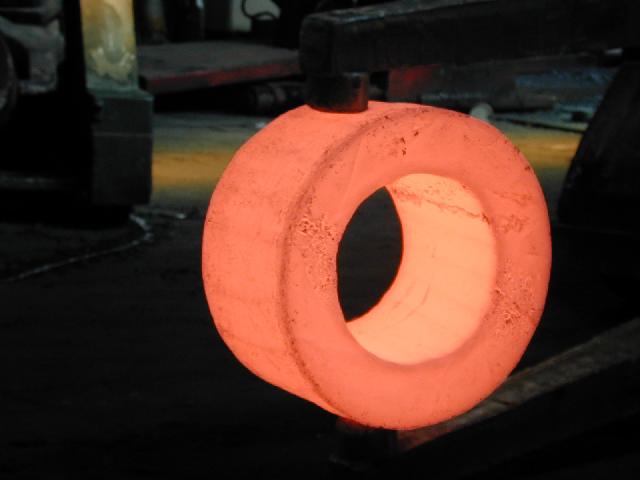

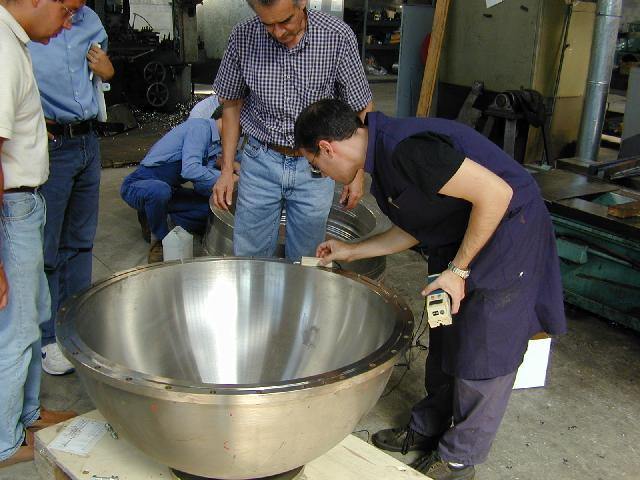

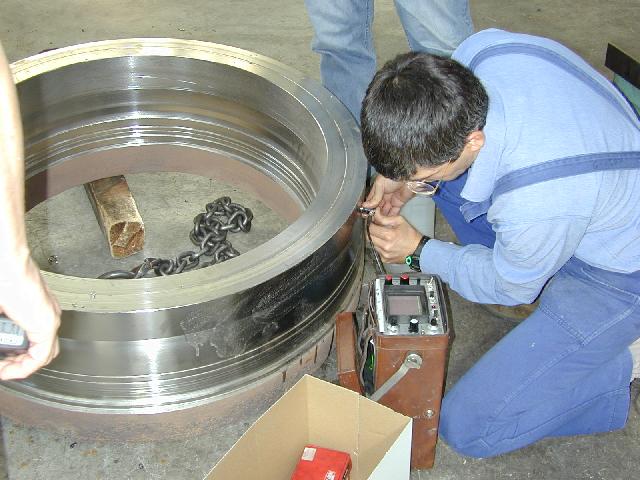

PHOTO GALLERY

PAPER and PRESENTATIONS
