Electromagnetic Test Results (Geant4-05-00) |
A set of tests, developed in the context of the Geant4 Test & Analysis project, generate physics distribution to be compared to reference data.
Incident particle |
|
Reference Data | Statistical analysis | |

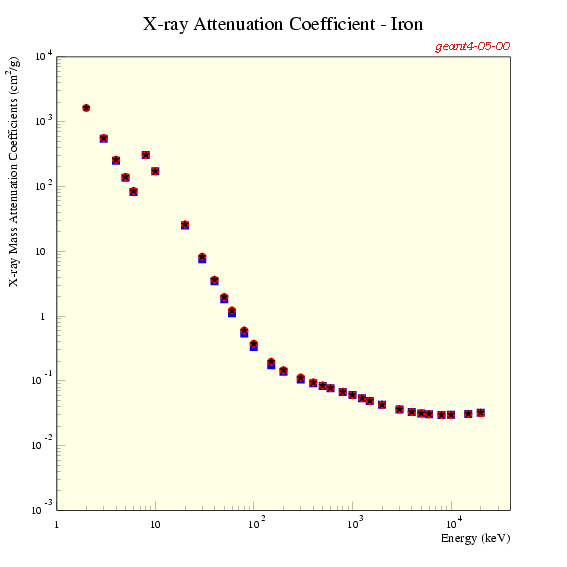

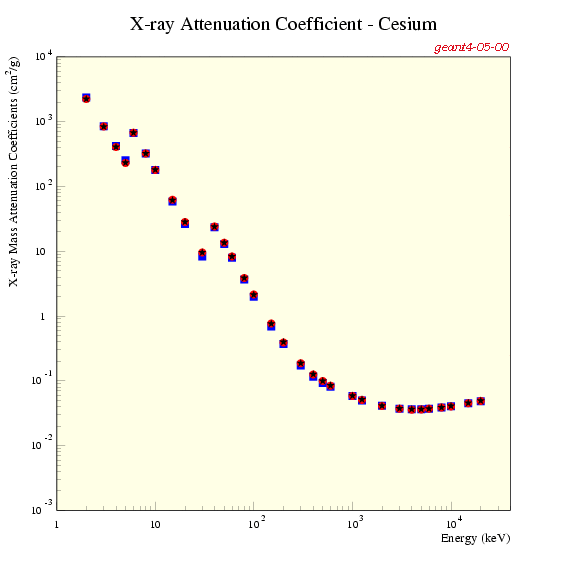

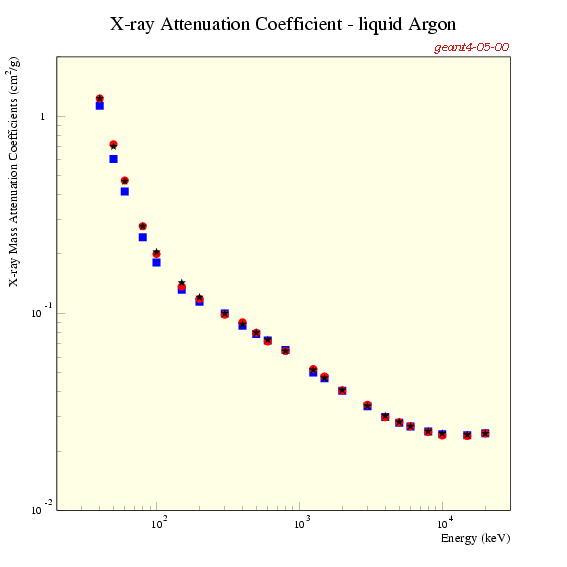

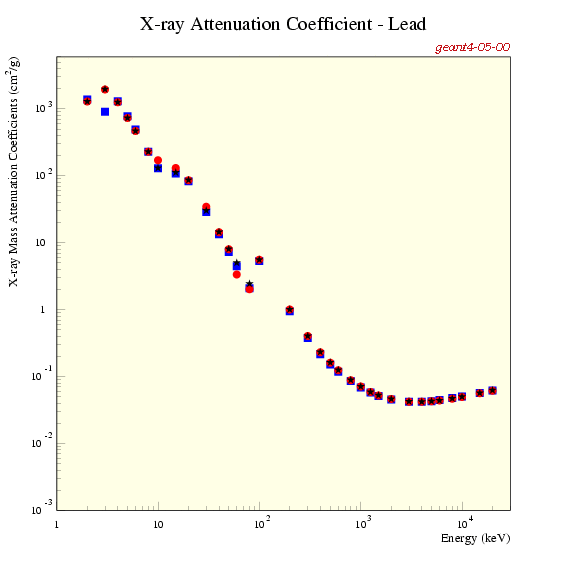

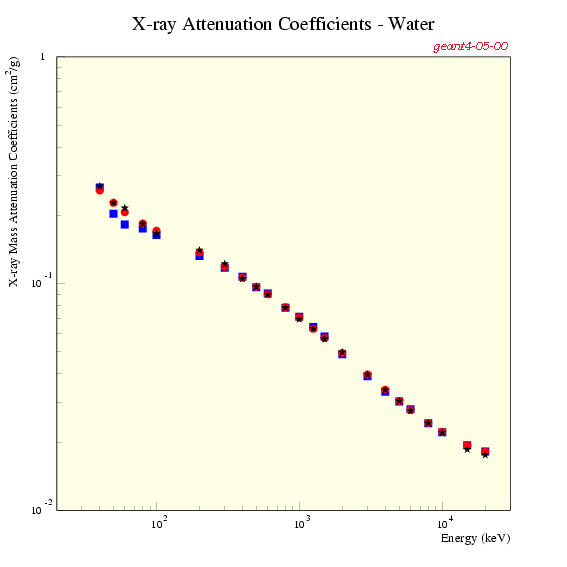

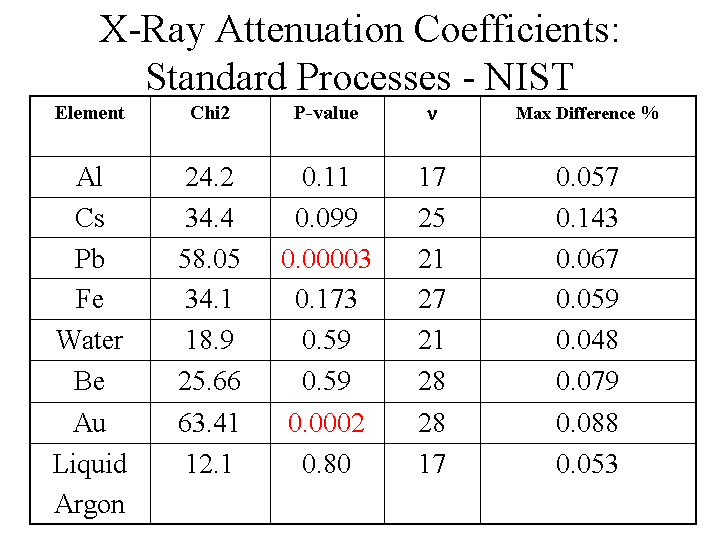

Photons | Mass attenuation coefficient | NIST | Standard-NIST
Low Energy-NIST Penelope-NIST |
|
Simulation Data | Summary:

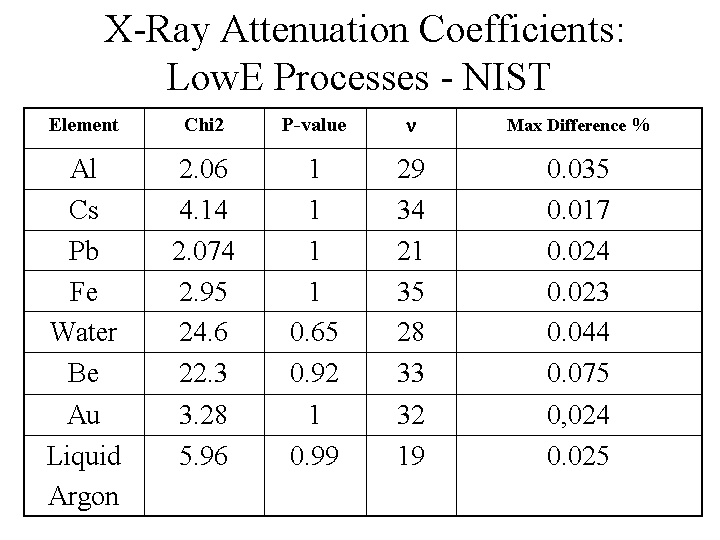

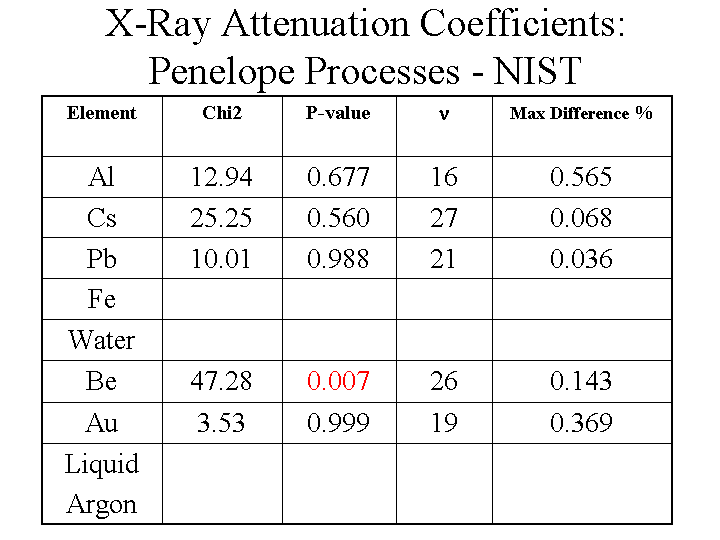

Standard and LowE-EPDL Be Al Ar Fe Cs Au Pb Water Summary: LowE-Penelope Be Al Ar Fe Cs Au Pb Water |
|||
Absorption coefficient | NIST | |||
Simulation Data | Plot | |||

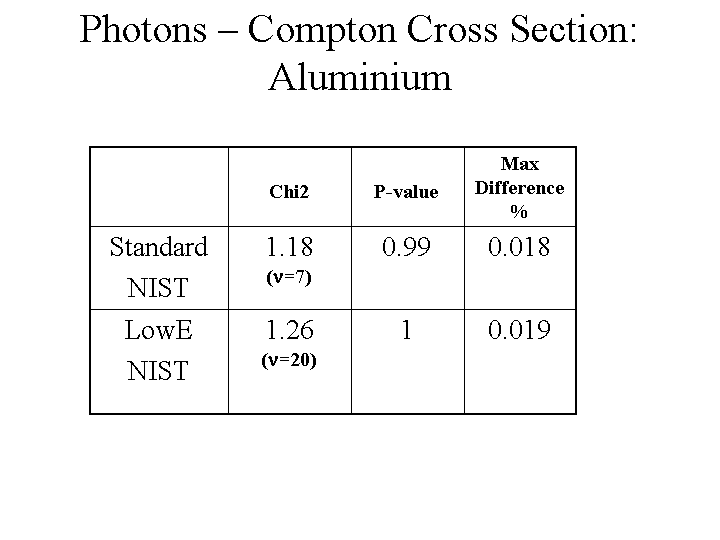

Compton cross section | NIST-XCOM | Standard/Low Energy-NIST | ||
Simulation Data | Al | |||

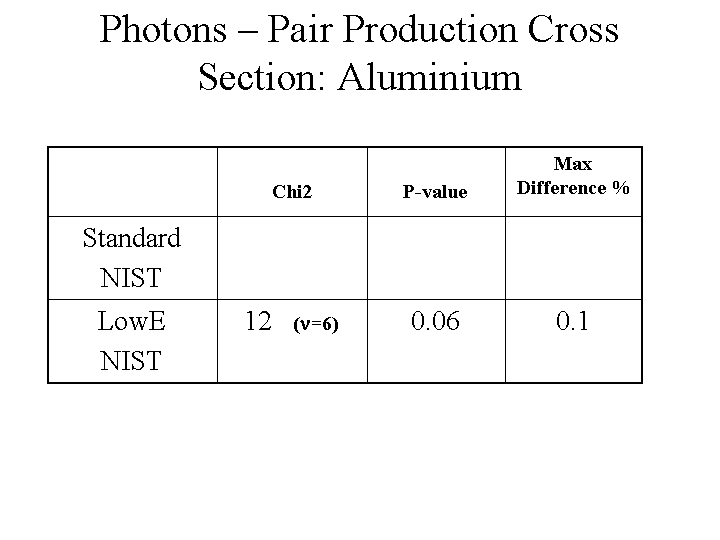

Pair production cross section | NIST-XCOM | Low Energy-NIST | ||
Simulation Data | Al | |||

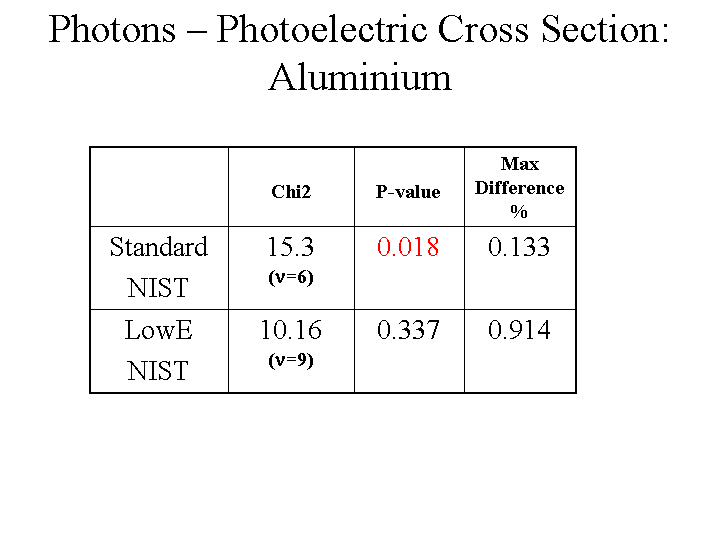

Photoelectric cross section | NIST-XCOM | Standard/Low Energy-NIST | ||
Simulation Data | Al | |||
Rayleigh cross section | NIST-XCOM | |||
Simulation Data | Plot | |||

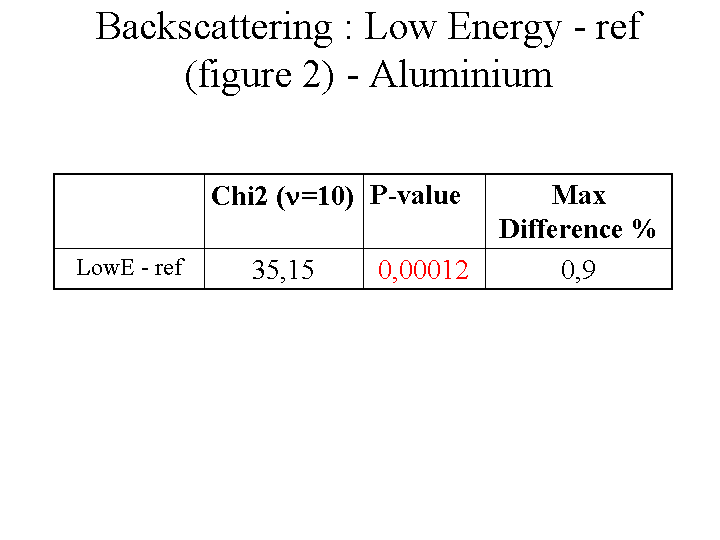

Backscattered | A. Smith et al.,
Phys. Rev. N (year) page m, figure x |
|||
Simulation Data | Plot | |||

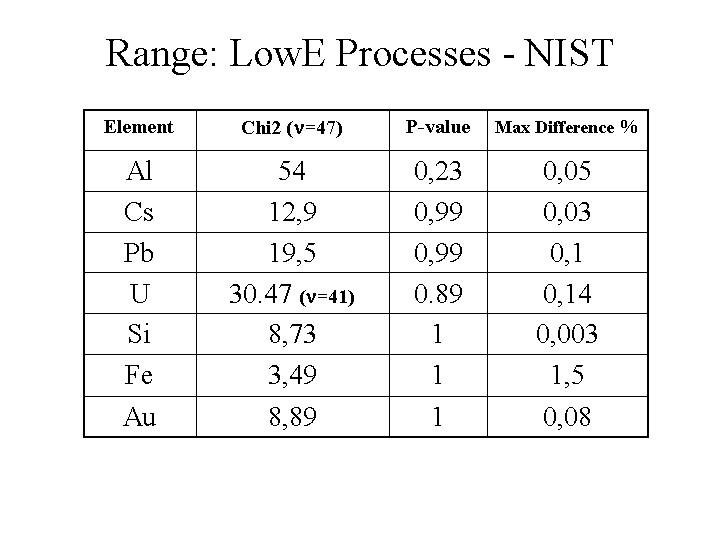

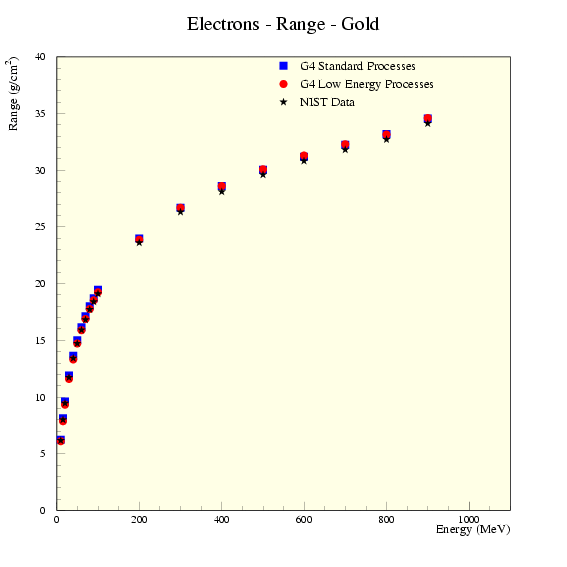

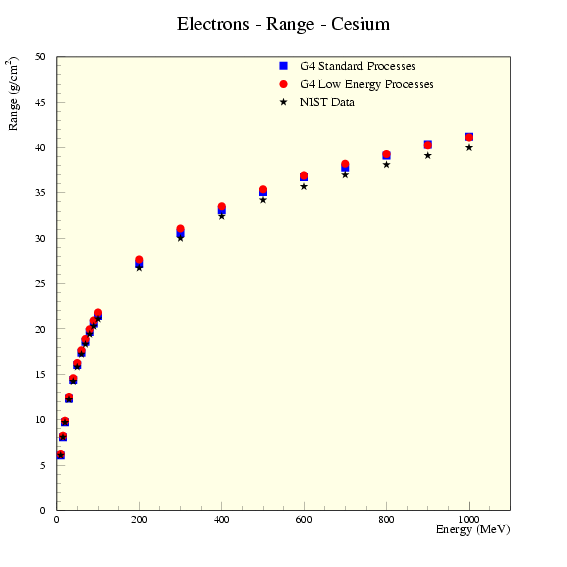

Electrons | CSDA range | NIST-ESTAR | Standard-NIST
Low Energy-NIST |
|
Simulation Data | ||||

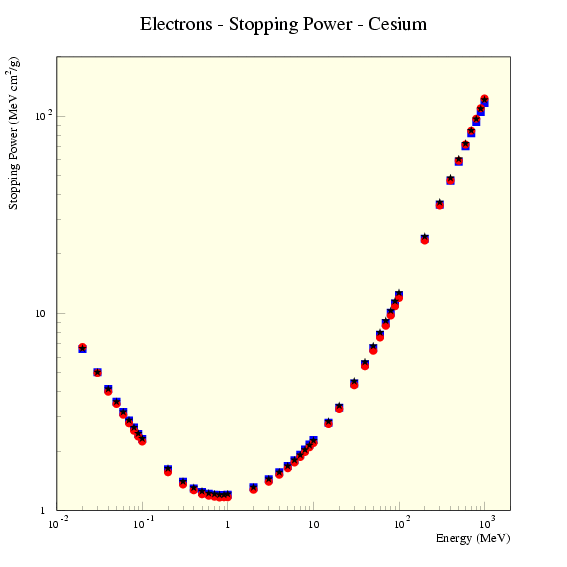

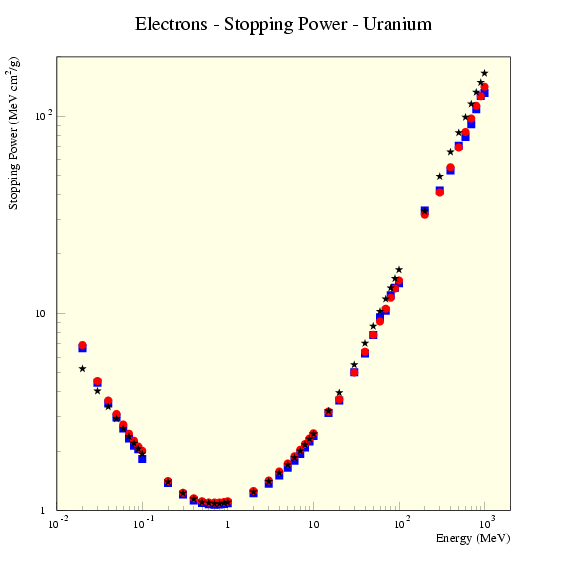

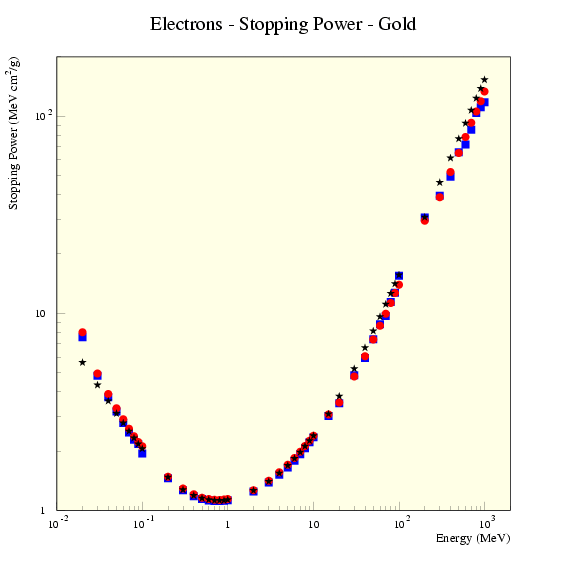

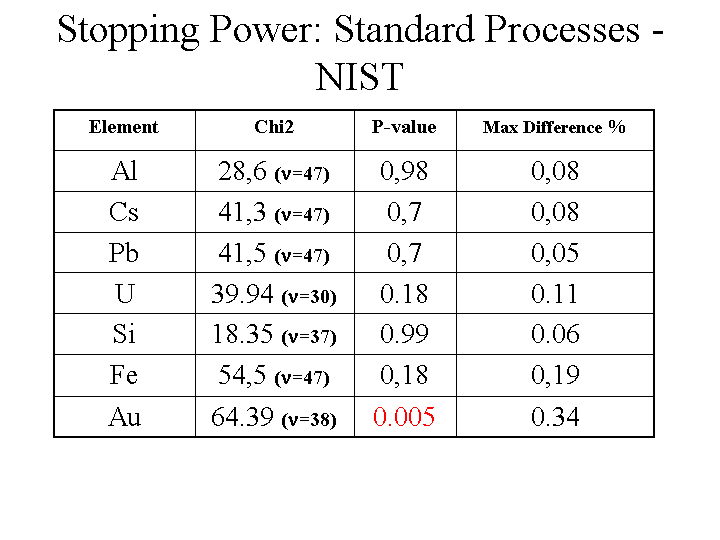

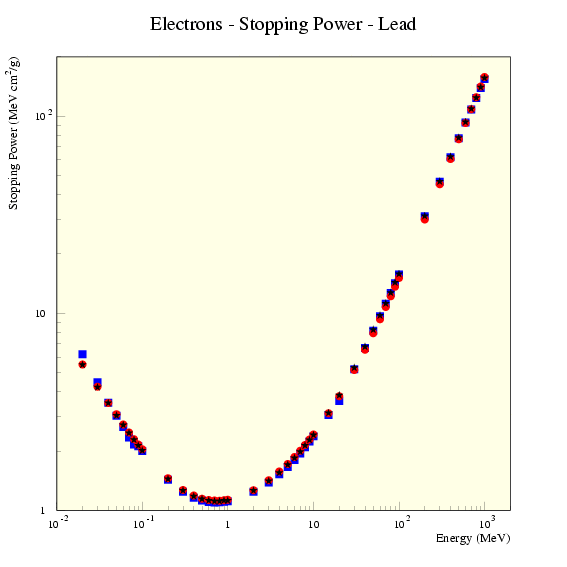

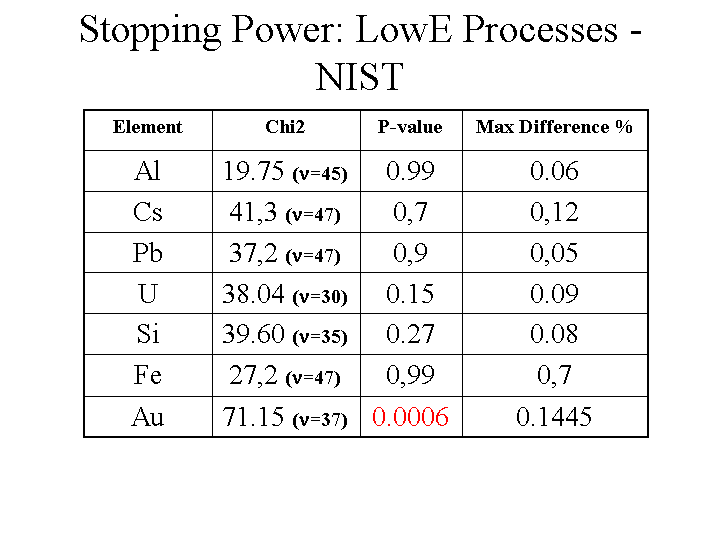

Stopping power | NIST-ESTAR
D.C. Joy, Electron Solid Interaction Database, SCANNING Vol. 17 (1995) |
Standard-NIST
Low Energy-NIST |
||
Simulation Data | ||||
Radiation yield | NIST-ESTAR | |||
Simulation Data | Plot | |||

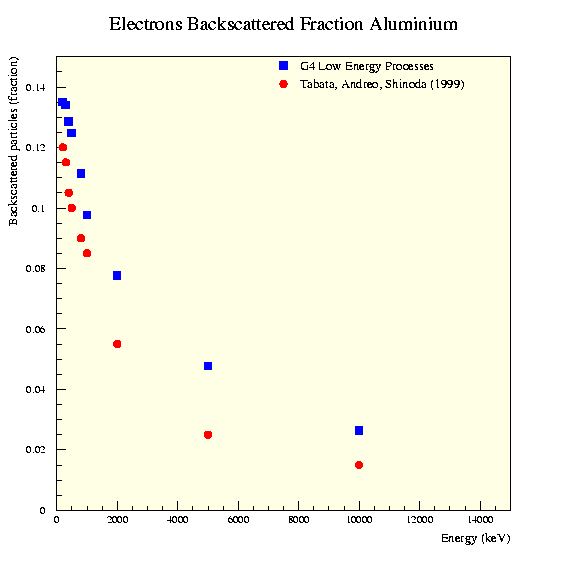

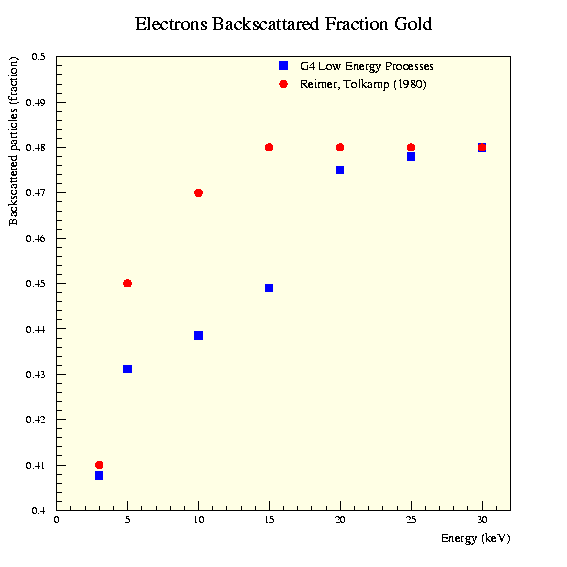

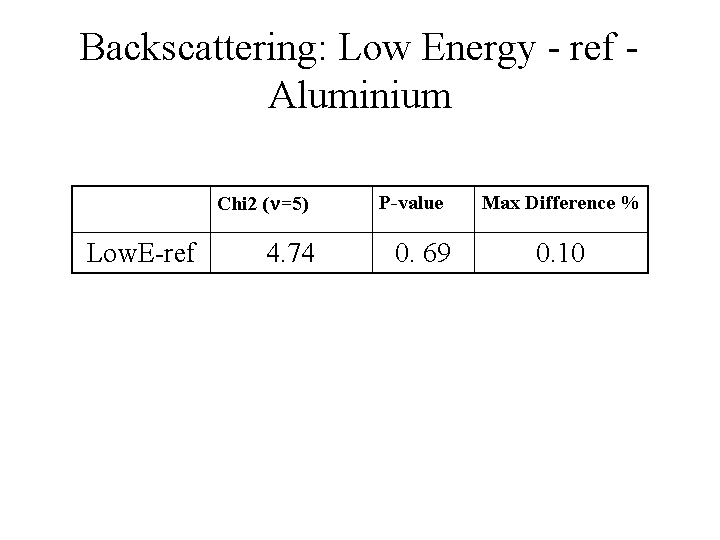

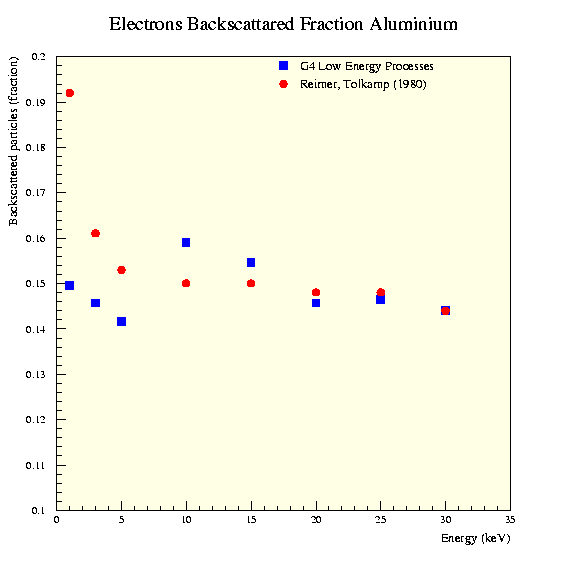

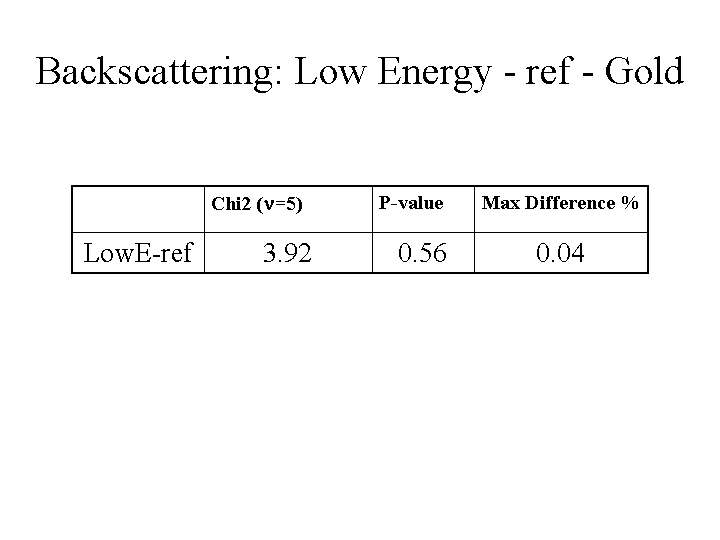

Backscattered fraction | D.C. Joy, Electron
Solid Interaction Database, SCANNING
Vol. 17 (1995), tables N-M
T. Tabata, P. Andreo, K. Shinoda, Radiat. Phys. Chem. 54 (1999) 11 |
Al
Low Energy
Au Low Energy Al LowE-Tabata,Shinoda (1999) |
||
Simulation Data | ||||

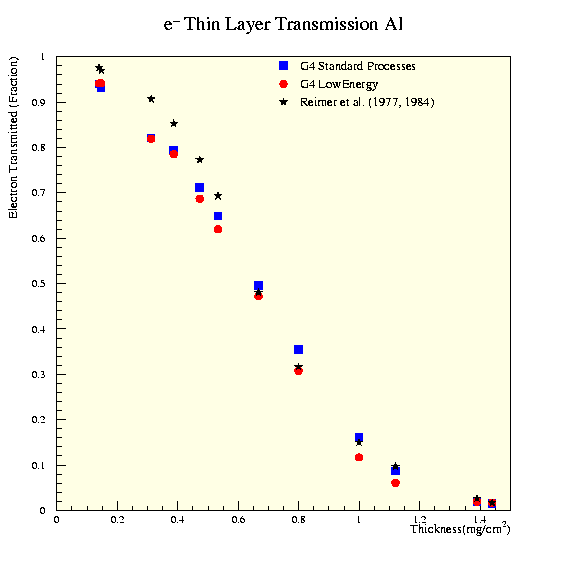

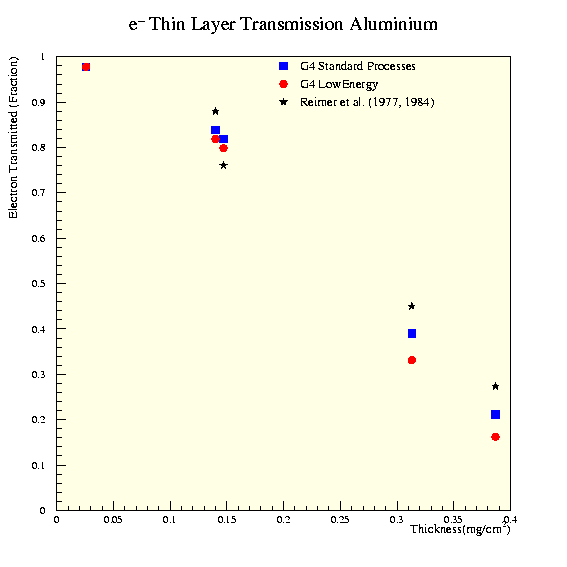

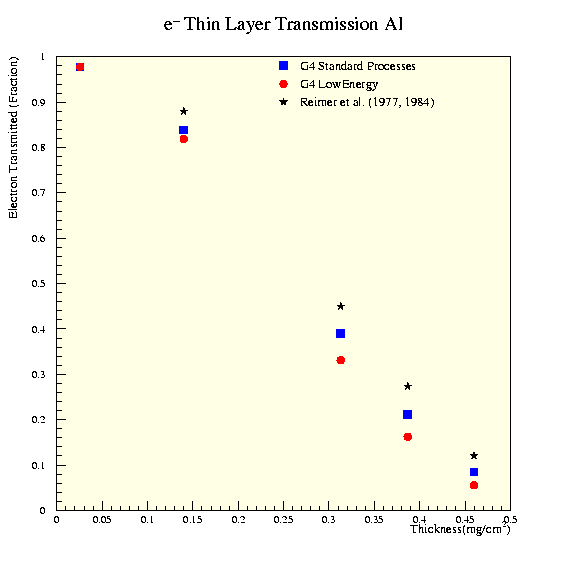

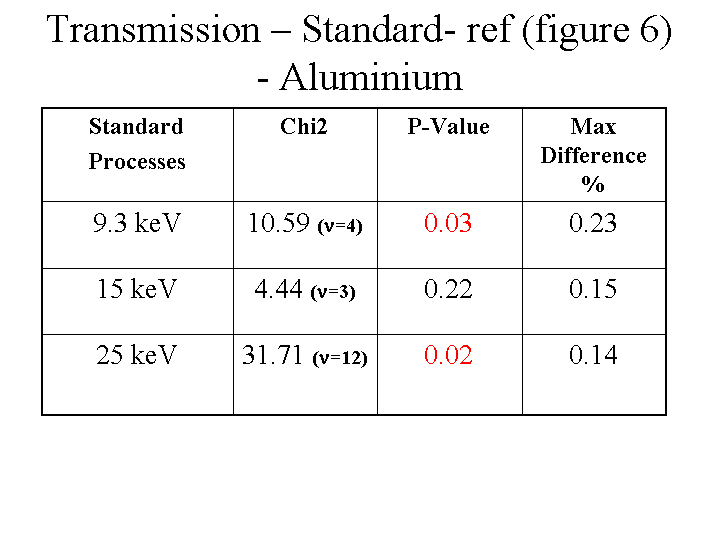

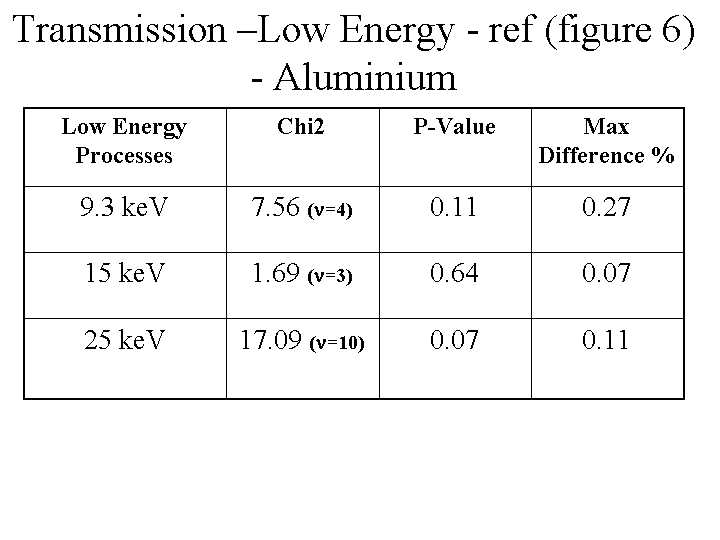

Transmitted fraction | L. Reimer, H. Dresher,
J. Phys. 10 (1977) 805
G. Neubert, S. Rogaschewski, J. Phys. D: Appl. Phys. 17 (1984) 2439 H.H. Seliger Phys.Rev. Vol.100 (4) (1955) 1029 |
Standard-ref
Reimer, Dresher (1977), Neubert Rogaschewski (1984)
Low Energy-ref Neubert Rogaschewski (1984), Low Energy-Seliger |
||
Simulation Data | ||||
Backscattered energy | ||||
Simulation Data | Plot | |||
Transmitted energy | ||||
Simulation Data | Plot | |||

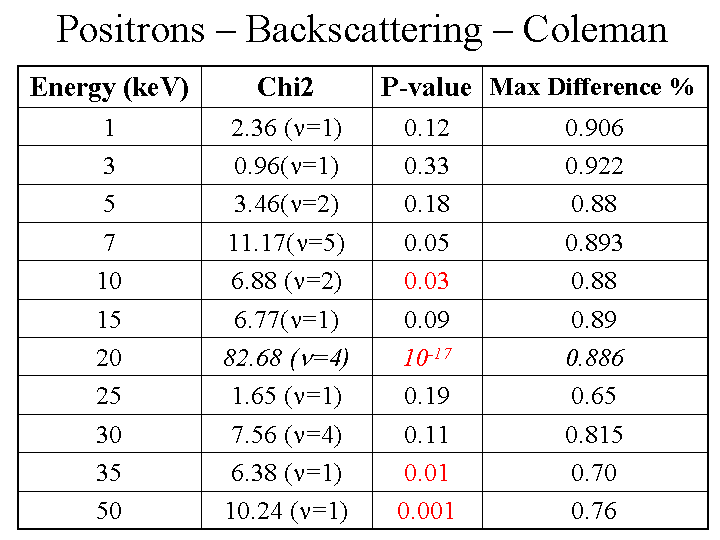

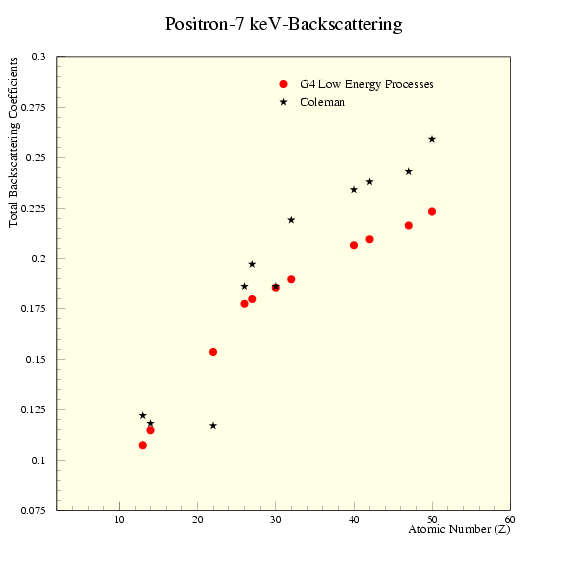

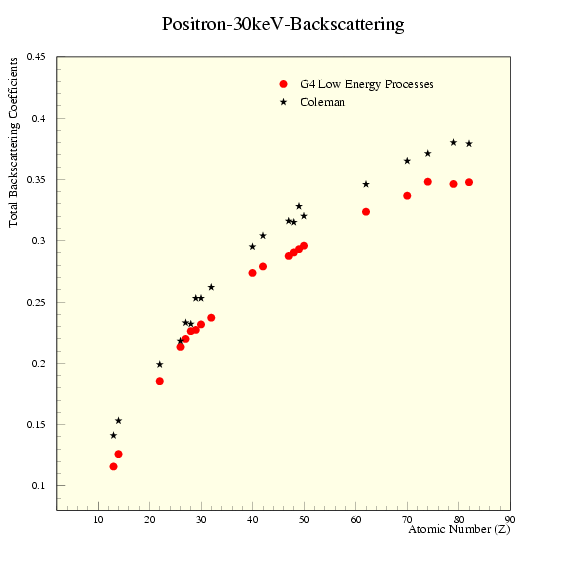

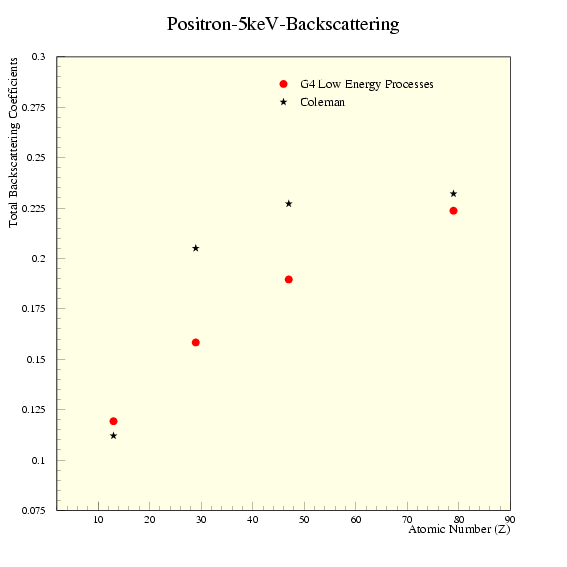

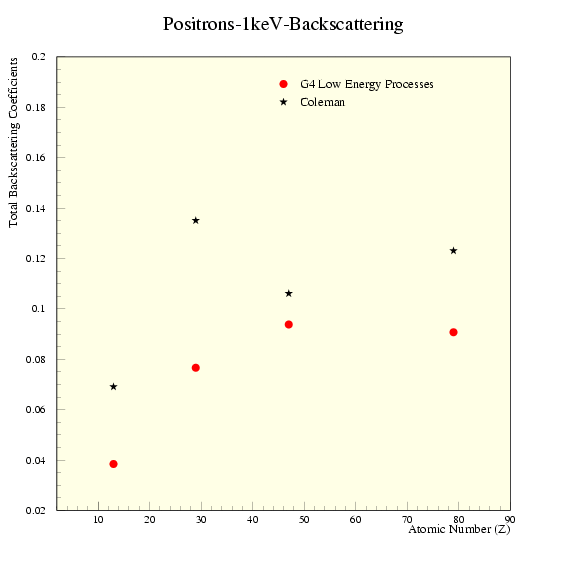

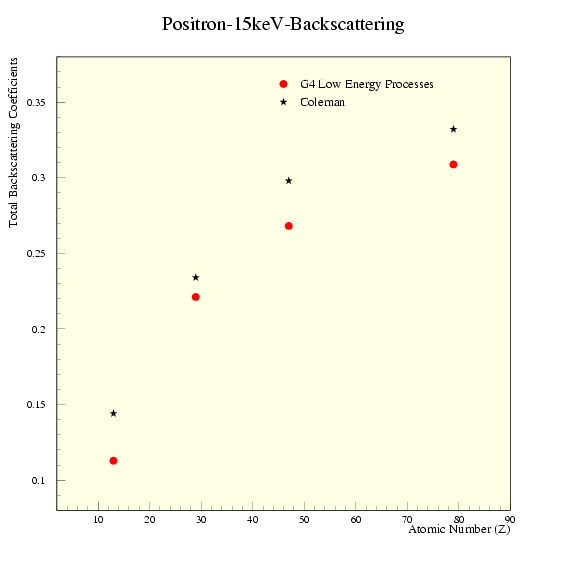

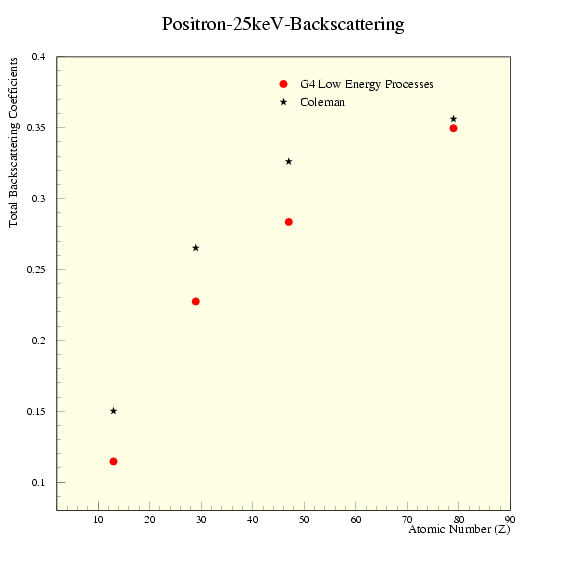

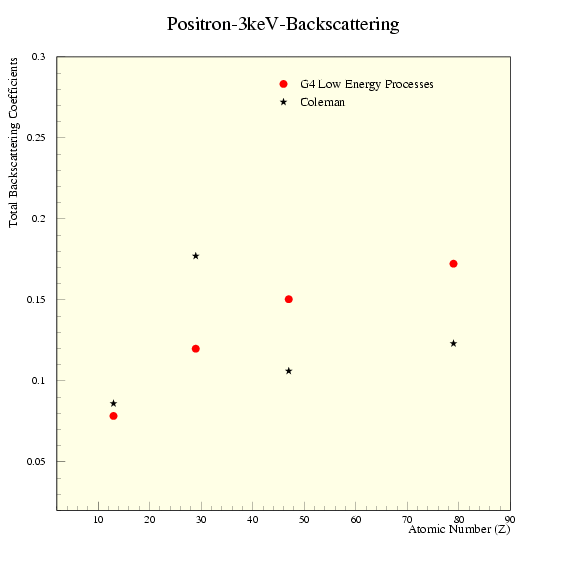

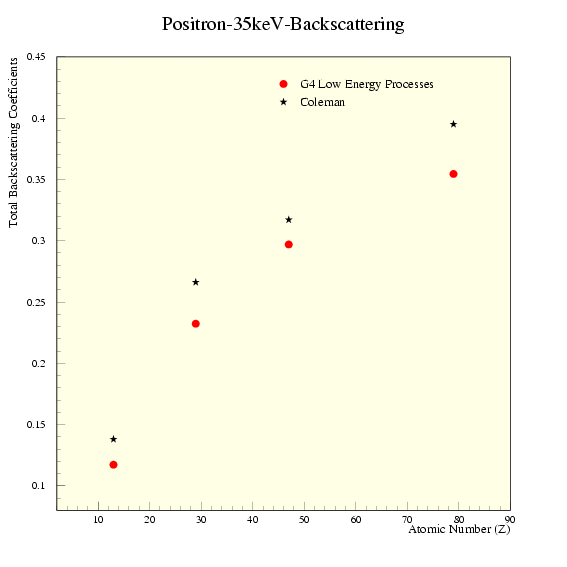

Positrons | Backscattered fraction | Coleman et al. J. Phys: Condens. Matter. 4 (1992) 10311 | Low Energy-Coleman | |
Simulation Data |
1
keV 3 keV 5
keV 7 keV 10
keV 15 keV
|
|||

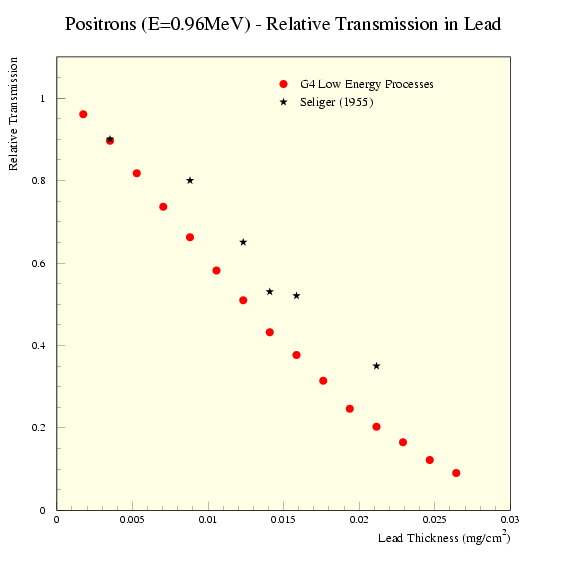

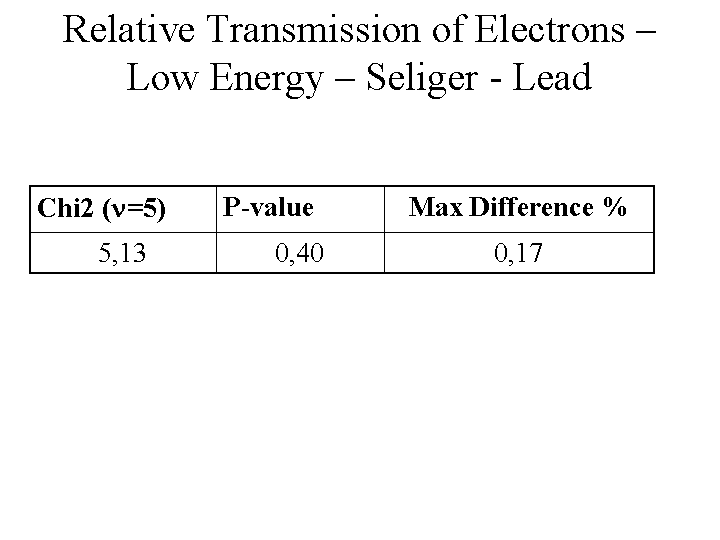

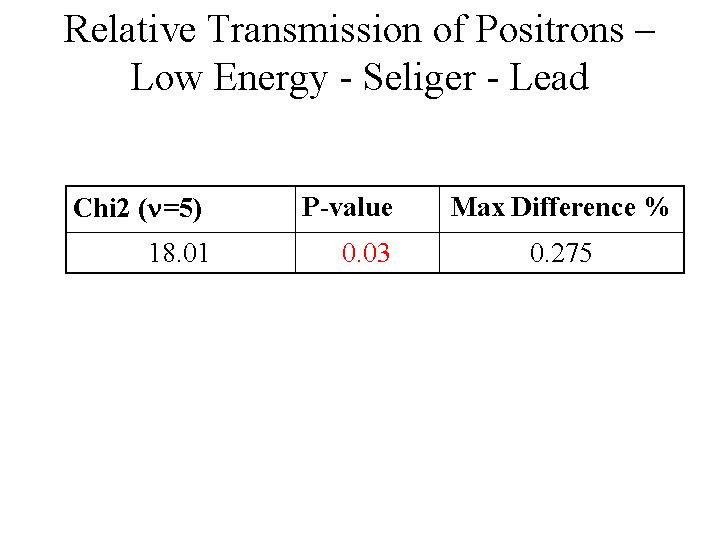

Transmitted fraction | H.H. Seliger Phys.Rev. Vol.100 (4) (1955) 1029 | Low Energy-Seliger | ||
Simulation Data | ||||

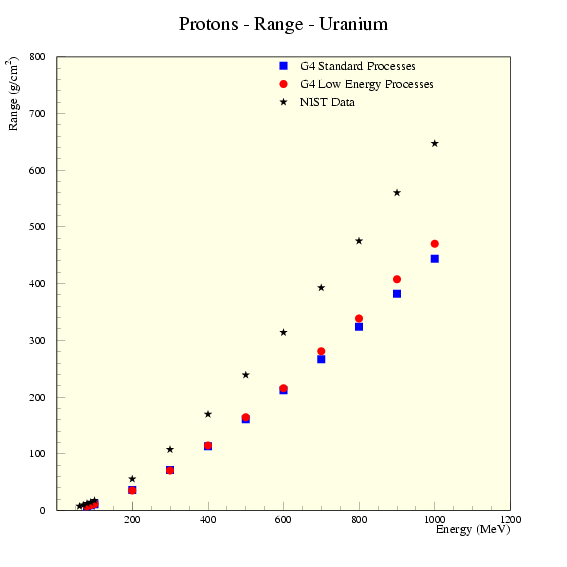

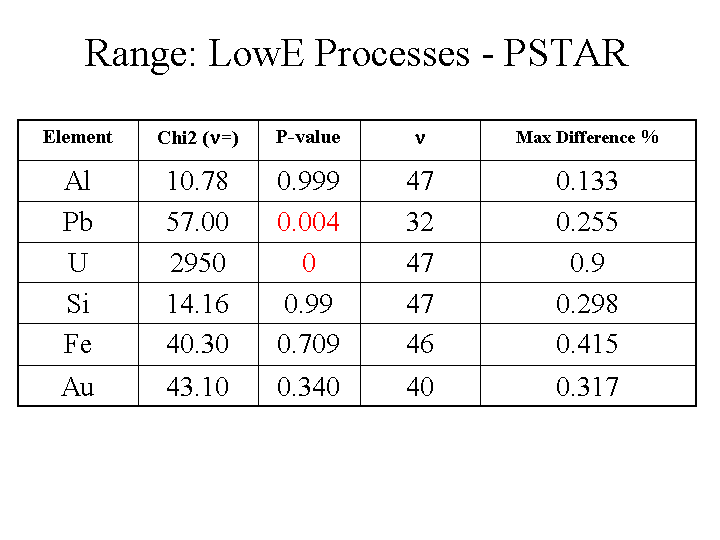

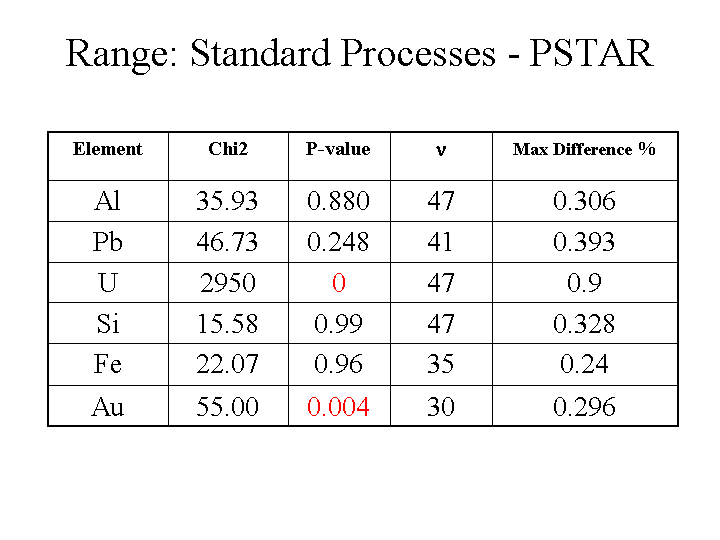

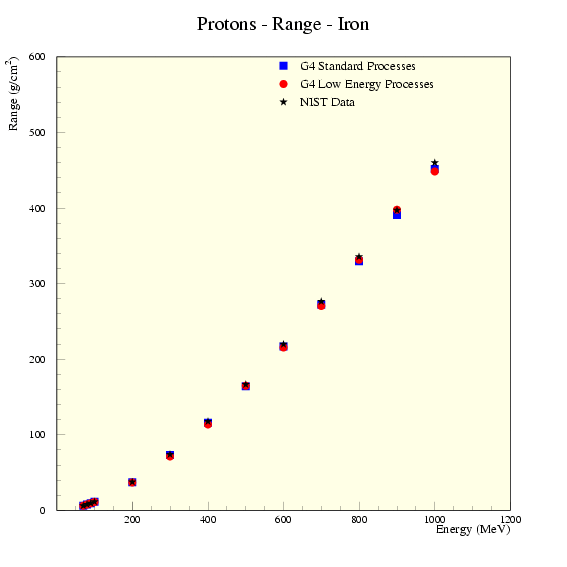

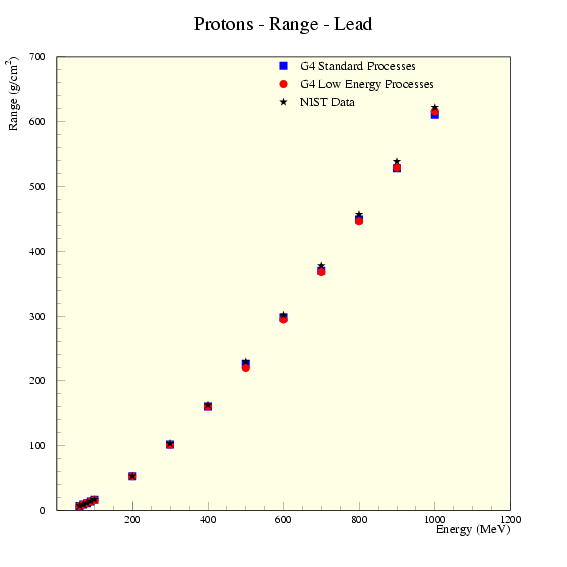

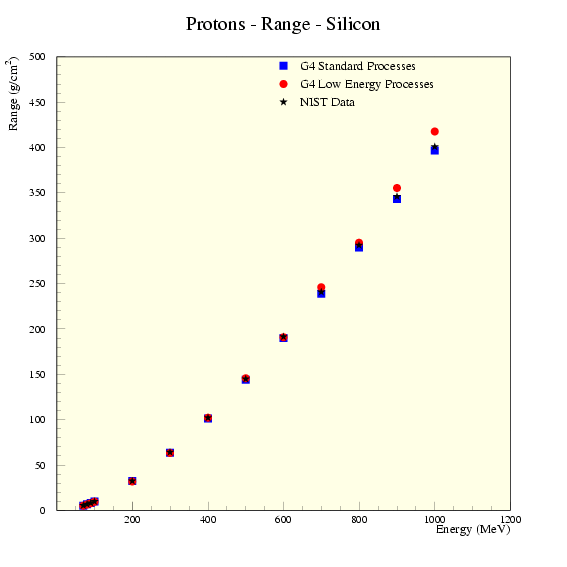

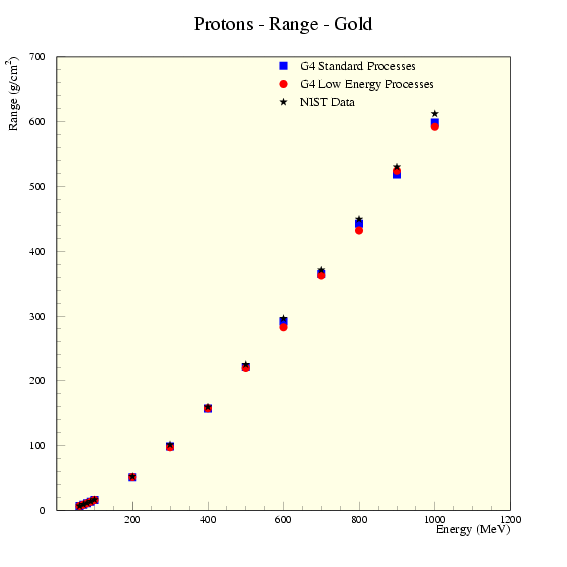

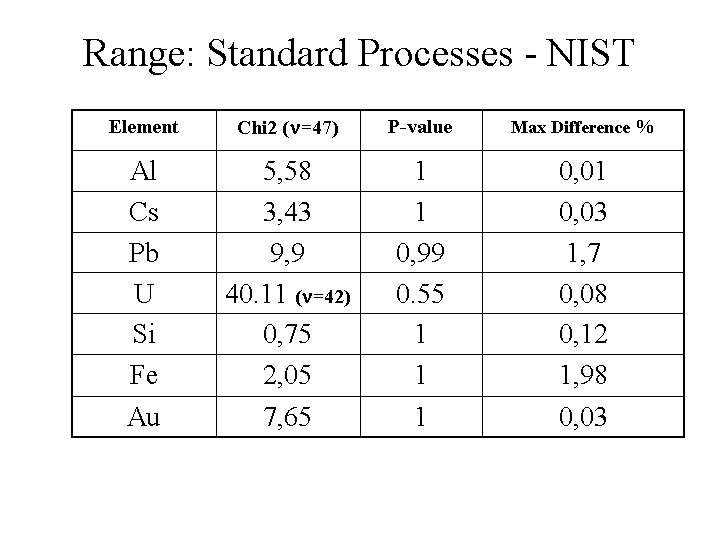

Hadrons | CSDA range | NIST-PSTAR | Standard-PSTAR
Low Energy-PSTAR |
|
Simulation Data | ||||
Stopping power | NIST-PSTAR | |||
Simulation Data | Plot | |||

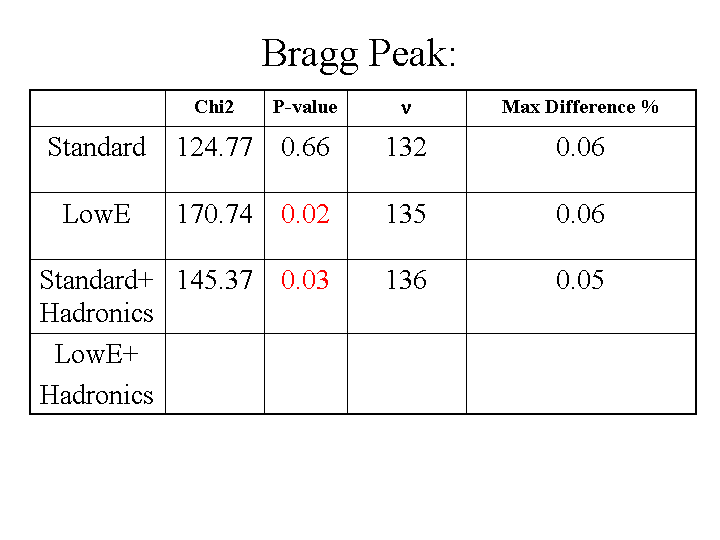

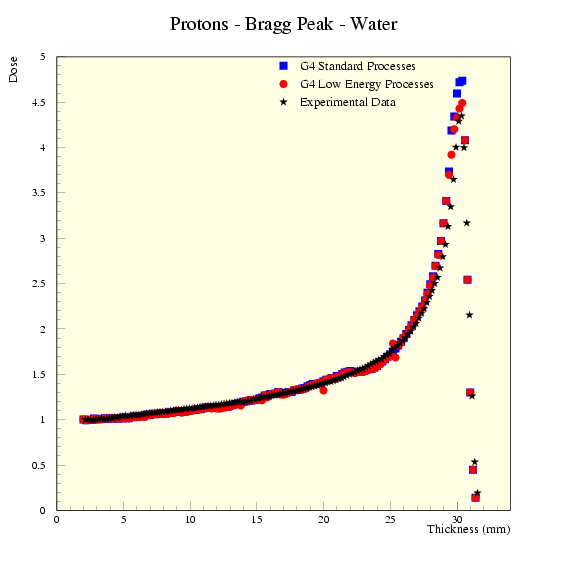

Bragg peak | Experimental measurements | Experimental measures | ||
Simulation Data |
Summary |
|||
Ions |
