Electromagnetic Test Results (Geant4-06-02) |
A set of tests, developed in the context of the Geant4 Test & Analysis project, generate physics distribution to be compared to reference data.
Incident particle |
|
Reference Data | Statistical analysis | |

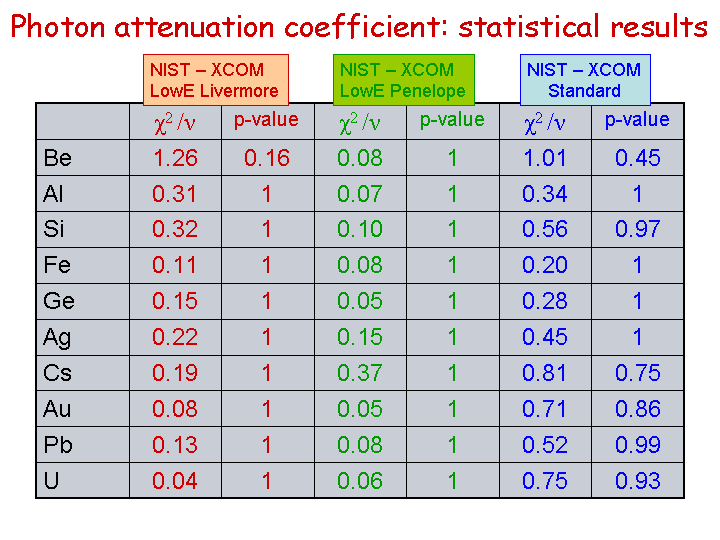

Photons | Mass attenuation coefficient | NIST-XCOM | Geant4-NIST | |
Simulation Data | Summary: - Standard, - LowE-EPDL, - LowE-Penelope |
|||
Absorption coefficient | NIST-XCOM | Work in progress | ||
Simulation Data | Work in progress | |||

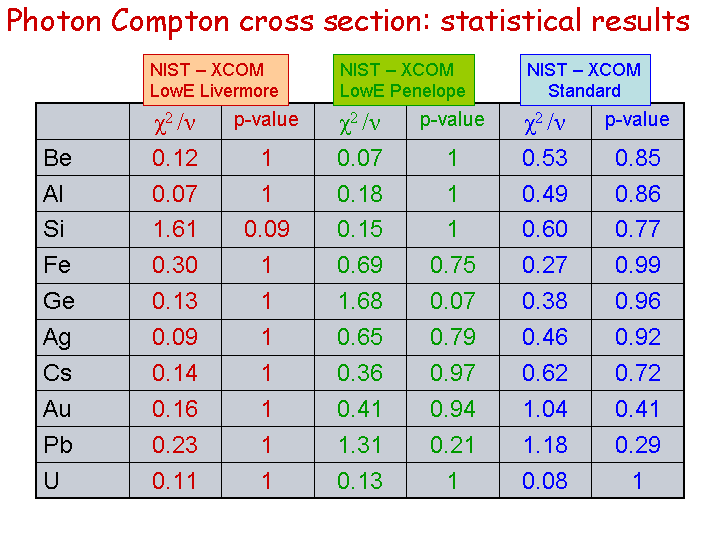

Compton cross section | NIST-XCOM | Geant4-NIST | ||
Simulation Data | Summary: - Standard, - LowE-EPDL, - LowE-Penelope |
|||

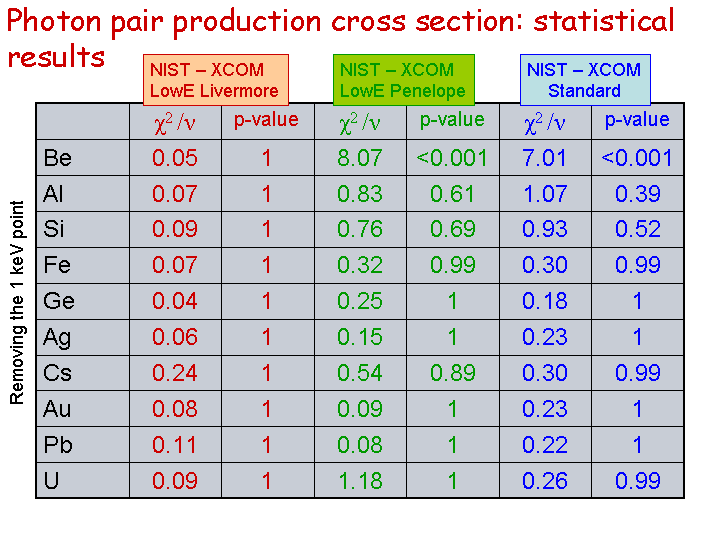

Pair production cross section | NIST-XCOM | Geant4-NIST | ||
Simulation Data | Summary: - Standard, - LowE-EPDL, - LowE-Penelope |
|||

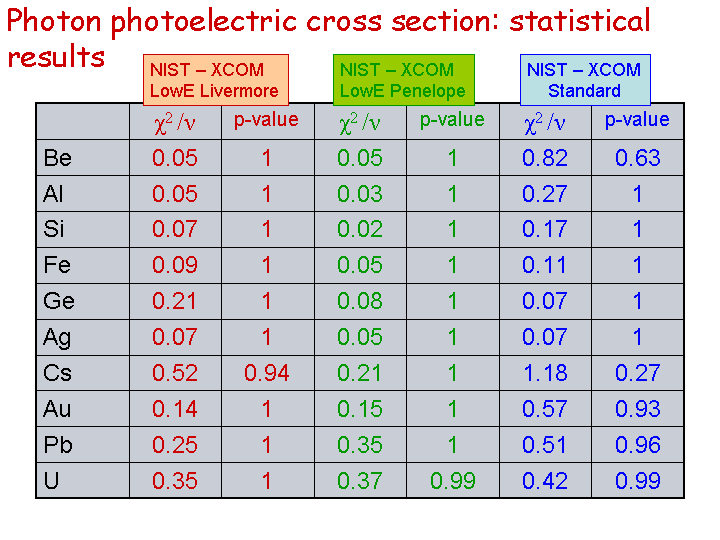

Photoelectric cross section | NIST-XCOM | Geant4-NIST | ||
Simulation Data | Summary: - Standard, - LowE-EPDL, - LowE-Penelope |
|||

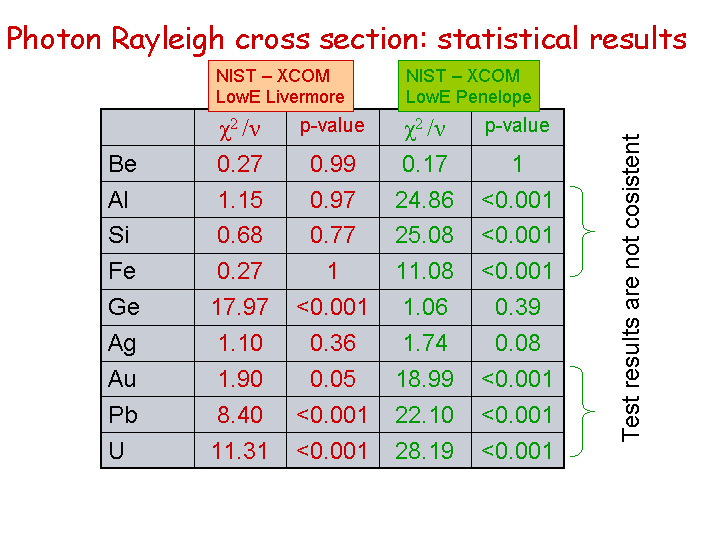

Rayleigh cross section | NIST-XCOM | Geant4-NIST | ||
Simulation Data | Summary: - Standard, - LowE-EPDL, - LowE-Penelope |
|||
Backscattered | A. Smith et al.,
Phys. Rev. N (year) page m, figure x |
Work in progress | ||
Simulation Data | Work in progress | |||

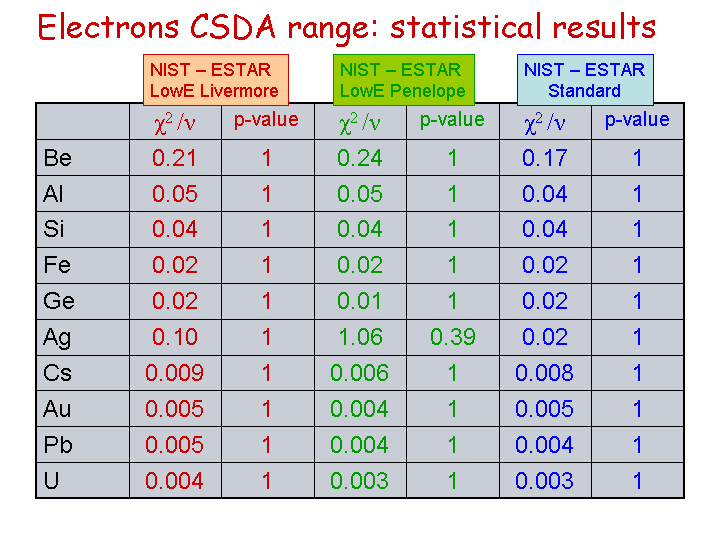

Electrons | CSDA range | NIST-ESTAR | Geant4-NIST | |
Simulation Data | Summary: - Standard, - LowE-EPDL, - LowE-Penelope |
|||
Stopping power | NIST-ESTAR
D.C. Joy, Electron Solid Interaction Database, SCANNING Vol. 17 (1995) |
Geant4-NIST | ||
Simulation Data | Summary: - Standard, - LowE-EPDL, - LowE-Penelope |
|||
Radiation yield | NIST-ESTAR | Work in progress | ||
Simulation Data | Work in progress | |||
Backscattered fraction | D.C. Joy, Electron
Solid Interaction Database, SCANNING
Vol. 17 (1995), tables N-M
T. Tabata, P. Andreo, K. Shinoda, Radiat. Phys. Chem. 54 (1999) 11 |
Work in progress | ||
Simulation Data | Work in progress | |||
Transmitted fraction | L. Reimer, H. Dresher,
J. Phys. 10 (1977) 805
G. Neubert, S. Rogaschewski, J. Phys. D: Appl. Phys. 17 (1984) 2439 H.H. Seliger Phys.Rev. Vol.100 (4) (1955) 1029 |
Work in progress | ||
Simulation Data | Work in progress | |||
Backscattered energy | Work in progress | Work in progress | ||
Simulation Data | Work in progress | |||
Transmitted energy | Work in progress | Work in progress | ||
Simulation Data | Work in progress | |||
Positrons | Backscattered fraction | Coleman et al. J. Phys: Condens. Matter. 4 (1992) 10311 | Work in progress | |
Simulation Data | Work in progress | |||
Transmitted fraction | H.H. Seliger Phys.Rev. Vol.100 (4) (1955) 1029 | Work in progress | ||
Simulation Data | Work in progress | |||

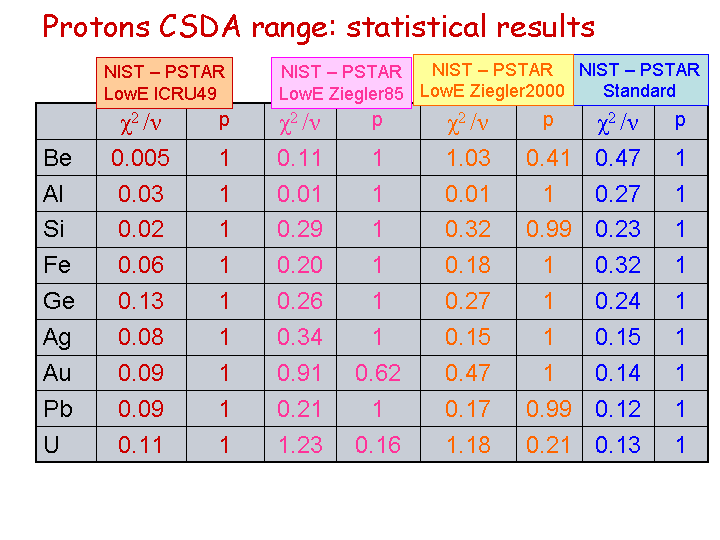

Protons | CSDA range | NIST-PSTAR | Geant4-NIST | |
Simulation Data | Summary: - Standard, - LowE-EPDL, - LowE-Penelope |
|||

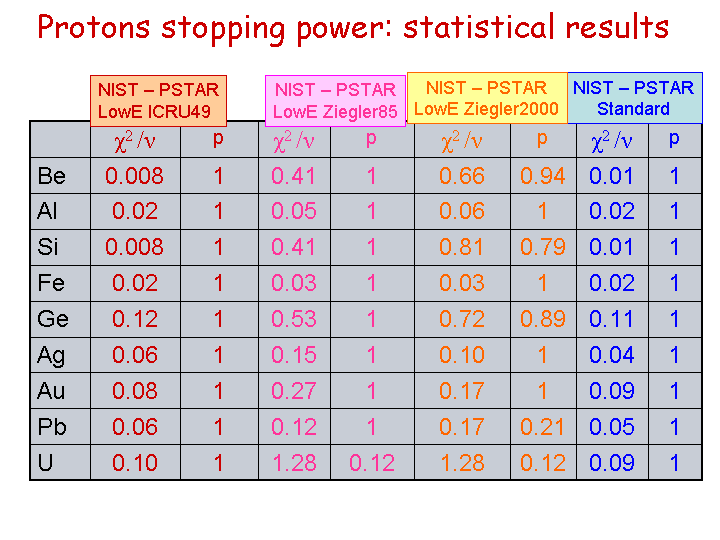

Stopping power | NIST-PSTAR | Geant4-NIST | ||
Simulation Data | Summary: - Standard, - LowE-EPDL, - LowE-Penelope |
|||
Bragg peak | Experimental measurements | Work in progress | ||
Simulation Data | Work in progress | |||
Alpha particles | CSDA range | NIST-ASTAR | Geant4-NIST | |
Simulation Data | Summary: - Standard, - LowE-EPDL, - LowE-Penelope |
|||
Stopping power | NIST-ASTAR | Geant4-NIST | ||
Simulation Data | Summary: - Standard, - LowE-EPDL, - LowE-Penelope |
Last modified 29 Nov 2004 -
Maria
Grazia Pia
