100-68-68-Pin Extended AI IO Connector Pinout

When you use an NI 6031E/6033E/6071E with an SH1006868 cable, the I/O signals appear on two 68-pin connectors. The following figures show the pin assignments of the two connectors.

Note  Some hardware accessories may not yet reflect the revised terminal names. If you are using a device in Traditional NI-DAQ (Legacy), refer to the Terminal Name Equivalents table for information on Traditional NI-DAQ (Legacy) signal names.

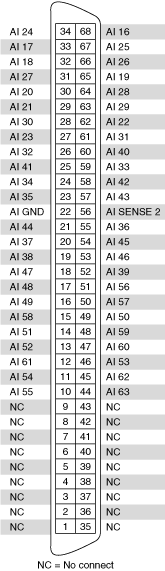

MIO–16 Connector Extended I/O Connector

1No connects appear on pins 20 through 22 of devices that do not support AO or use an external reference.
