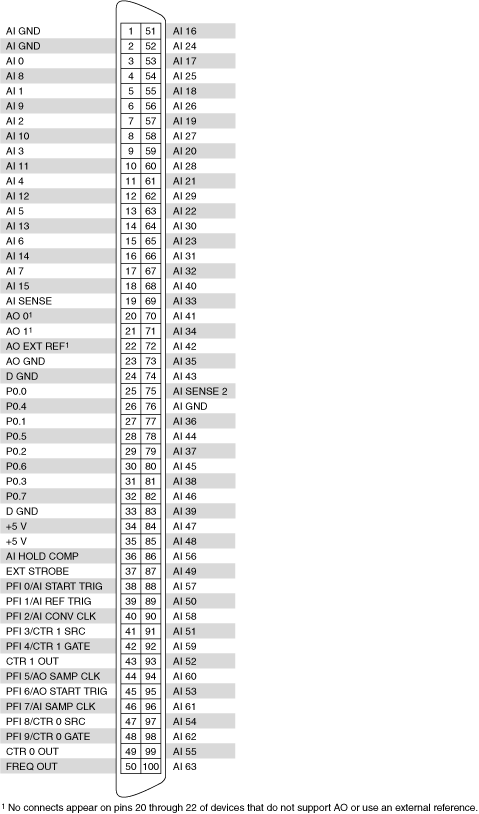

This figure shows the pinout of 100-pin Extended AI E Series devices. The following E Series devices use this pinout:
If you are using a 100-pin Extended AI E Series device with an SH1006868 cable, refer to the 100-68-68-Pin Extended AI pinout. If you are using a 100-pin Extended AI E Series device with an R1005050 cable assembly, refer to the 100-50-50-Pin Extended AI pinout.
![]() |
Note Some hardware accessories may not yet reflect the revised terminal names. If you are using a device in Traditional NI-DAQ (Legacy), refer to the Terminal Name Equivalents table for information on Traditional NI-DAQ (Legacy) signal names. |
