Introduction

Today's exercises cover the following items:

  • Element and material definition
  • Geometry (define & modify)
  • Generation of primary particles

A Geant4 application example is provided, which serves as basis of the exercises. The exercises include the modification and/or extension of the following classes:

  • DetectorConstruction
  • PrimaryGenerator

Exercises

Part I - Introductory exercises

Exercise 2-1
Get familiar with the classes of the example application, that correspond to the topic of the exercises.

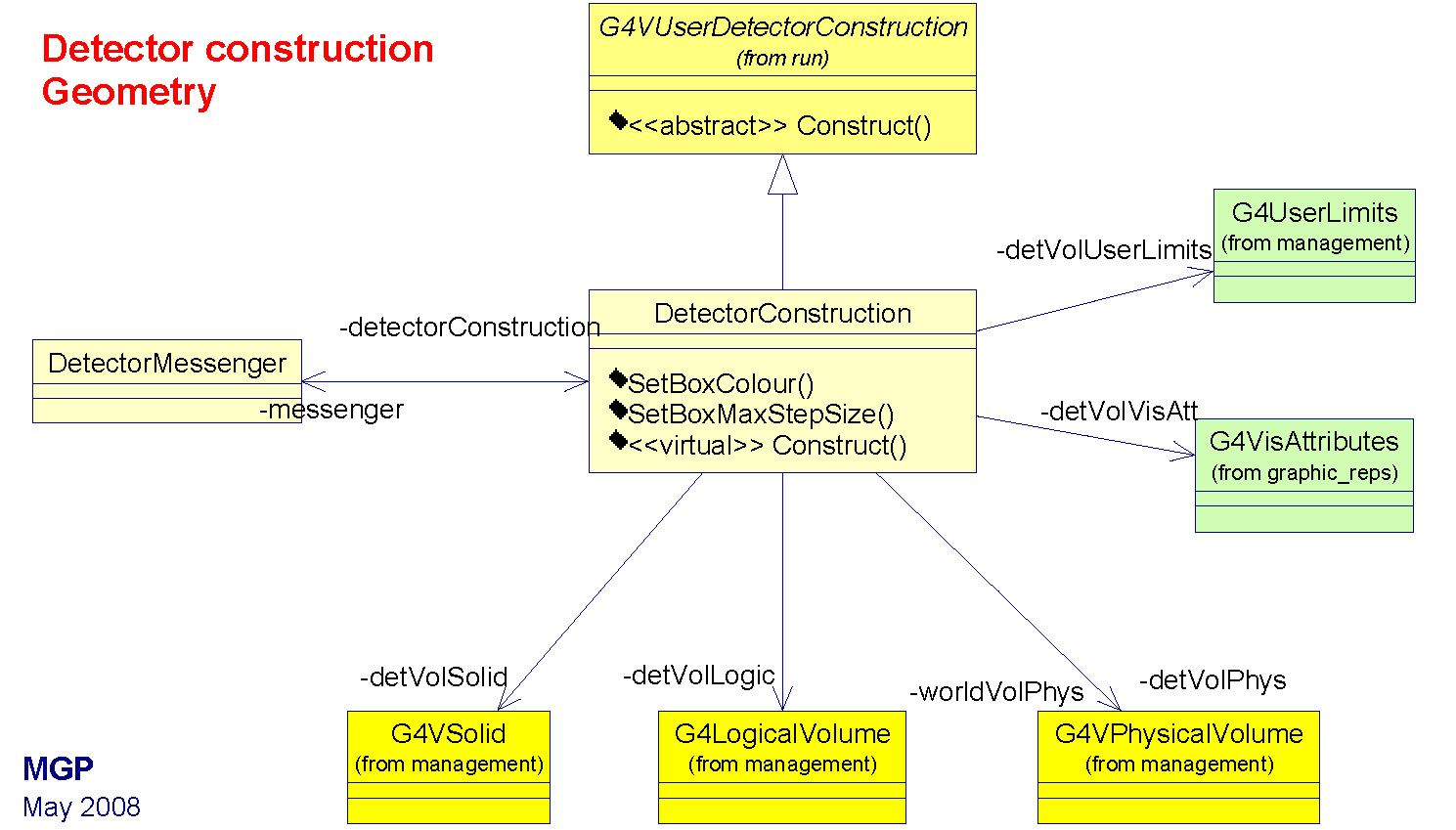

The following diagram shows the class hierarchy of the detector (click here for a PDF file):

Class Diagram 4A (Day 4)

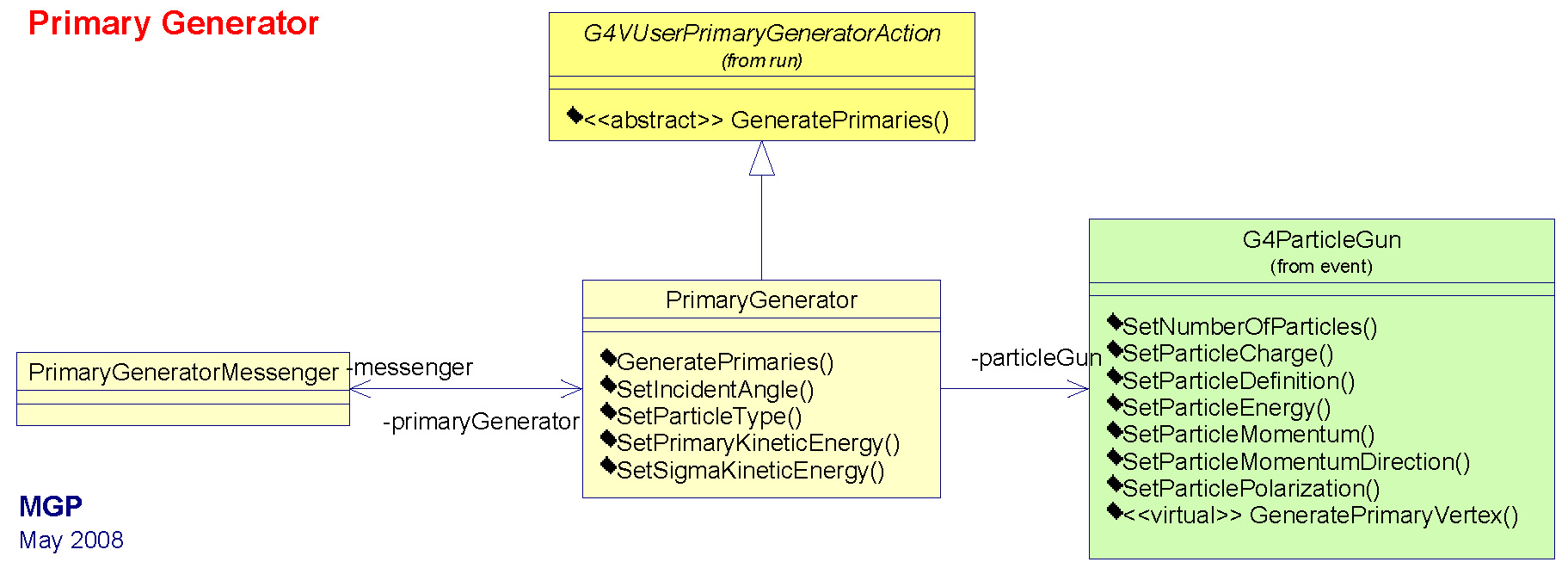

The class hierarchy of the primary generator is shown in the second diagram (click here for a pdf file):

Class Diagram 4B (Day 4)

Answer the following questions:
  • Which are the base classes of the following user classes?
    • DetectorConstrution
    • PrimaryGenerator
  • Which of above classes is mandatory for a Geant4 application?
  • Which virtual method do you have to overload in your DetectorConstruction? What does it return?
  • Which virtual method do you have to overload in your PrimaryGenerator? What does it do?
  • How do you define a G4Material (molecule, material or compound)?
  • What are the mandatory ingredients to define a G4Material? And the optional ones?
  • Which G4VSolid specializations describe boxes, cylinders and spheres?
  • How would you define a cylindrical sector of  π/4 opening angle?
  • What is the difference between a solid and a logical volume?
  • What is the difference between a logical and a physical volume?
  • What does it mean that a volume is the daughter of another one?
  • Is it possible for a volume to protrude from its mother?
  • Sensitive and visualization attributes are attached to logical or physical volumes?
  • Which concrete generator (namely, inheriting from G4VPrimaryGenerator) is used in the tutorial example to shoot primary particles?
  • How can you get a pointer to the electron G4ParticleDefinition?

Part II - Materials

Exercise 2-2
In the  DetectorConstruction.cc class define the following G4Isotopes (stable isotopes of germanium); then define a G4Element, which is germanium enriched in Ge-76.

  • Ge-72: Z=32, A=72, atomic mass=71.92 g/mole, isotopic abundance = 0.1%
  • Ge-73: Z=32, A=73, atomic mass=73.0 g/mole, isotopic abundance = 0.2%
  • Ge-74: Z=32, A=74, atomic mass=74.0 g/mole, isotopic abundance = 13.1%
  • Ge-76: Z=32, A=76, atomic mass=76.0 g/mole, isotopic abundance = 86.6%
Define a G4Material, as metallic germaniumm with density=5.32 g/cm3.

Exercise 2-3

  1. Define a G4Material, liquid nitrogen, consisting of one element (nitrogen):
    • Z=7,
    • A=14.01 g/mole,
    • density=0.808 g/cm3,
    • temperature=77 K

  2. Define a gaseous G4Material, air, as a mixture of nitrogen (80% in mass) and oxygen (20% in mass).
    • Density=1.290 mg/cm3,
    • pressure=1 atm,
    • temperature=300 K.
    • Elemental properties of nitrogen are listed above. For oxygen: Z=8 and A=15.9994 g/mole

Part III - Geometry

Exercise 2-4

  1. Replace the material of the world volume (worldVolLogic): from vacuum to air
  2. Include in the setup a cylinder made of liquid nitrogen, radius = 10 cm, height = 20 cm.
    This volume should be daughter of the world volume and mother of the silicon box
  3. Place the nitrogen volume in the centre of the air world volume
  4. Rotate the liquid nitrogen volume, in such a way that the cylinder axis corresponds to the x-axis, rather than the z-axis (default). This corresponds to rotating the cylinder by π/2 with respect to the y-axis
  5. This volume is not sensitive.
  6. Define detVolPhys as a daugther of the nitrogen cylinder. Keep the same translation as before, namely (0,0,boxLength*0.5) with respect to the global coordinate system. Be careful: the mother volume is rotated!

Exercise 2-5

  1. Re-define the material of detVolLogic from silicon to enriched germanium
  2. Change the maximum step size in the detVolLogic from 1.0 micrometer to 0.5 micrometer (note: this can be also changed interactively with the command /detector/maxStepSize). Set the maximum step size in liquid nitrogen to 0.1 mm.
  3. Do you need to re-define or update the read-out geometry? Why?

Part IV - Primary generator

Exercise 2-6
In the default case, the primary particle is a 1 MeV electron impinging perpendicularly on a side of the detector box. The beam angle can be changed interactively by the command /source/incidentAngle

  1. for each event, draw a random number x in [0,1] using G4UniformRand(), and shoot an electron if xpositron (G4Positron) if x>0.5
  2. what does it happen if you generate a positron at rest (namely zero kinetic energy)?

Exercise 2-7
Remove the code produced within the previous exercise, and replace the "pencil beam" defined by default with a isotropic point source.

The source should be placed 1 cm above the centre of the detector (on z axis).
It emits 662-keV gamma-rays with isotropic angular distribution.

Exercise 2-8
Generate a point source, as before, emitting gamma-rays of 122 keV (branching ratio: 86%) and 136 keV (branching ratio: 14%)
